Aptina AR0330 Sensor Fisheye Camera Module 3MP 140 Degrees DVP Interface
3MP 140 Degrees Fisheye Lens DVP Camera Module With Aptina AR0330 CMOS Sensor
DVP camera module

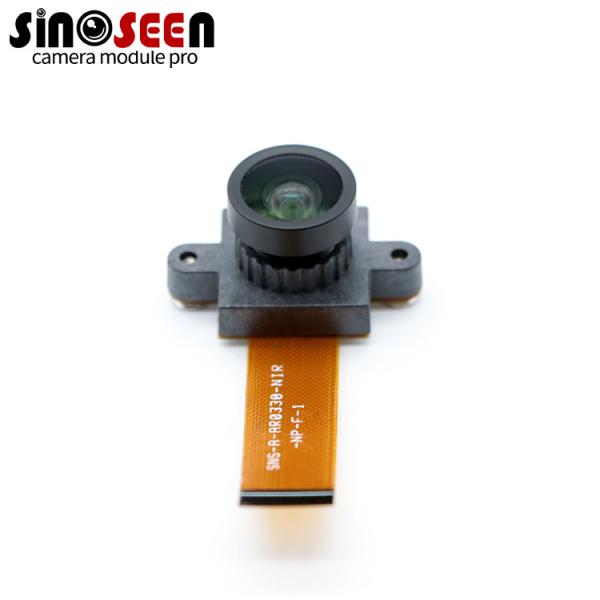

This is a 3MP DVP camera module with sensor AR0330 from Aptina, Aptina's AR0330CS is a 1/3-inch CMOS digital image sensor with an active-pixel array of 2304Hx1536V. It can support 3.15 megapixel (2048H x 1536V) digital still image capture and a 1080p30+20%EIS (2304H x 1296V) digital video mode. It incorporates sophisti cated on-chip camera functions such as windowing, mirroring, column and row subsampling modes, and snapshot modes.
On the basis of the current module, you can customize the length of the FPC, modify the pinouts according to your requirements, and change the lens suitable for your application.
Specification
| Module No | SNS-A-AR0330-NIR-NP-F-1 |
| Pixel Size | 2.2μm x 2.2μm |
| Effective Pixels | 2048×1536 |
| Video output | Raw Bayer10bit/8bit |
| Image Sensor | 1/3" |
| Sensor Type | Aptina AR0330 |
| Lens view | FOV140°(optional),F/N(optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | -30～70℃ |
| Storage temperature | 0～60℃ |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
